Model No.: S6216

Brand Name: SHJ

Means of Transport: Air

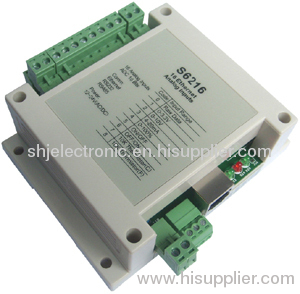

S6216 is a high quality and low cost Ethernet data acquisition module with 16 analog inputs.

S6216 is a high quality and low cost Ethernet data acquisition module with 16 analog inputs. Each input has lightning and surge protection, can be any combination of 0-5V,0-20mA,0-10V,dry contact, NTC 10K thermistor. Fast speed MCU can handle high frequency pulse and store counter into EEPROM. Output is Ethernet with MOSBUS/TCPIP protocol, also has a RS232/RS485 port with standard modbus protocol to configure the module.

Technical data:

Resolution ------ 16-bit

Input channel number ------ 16

Input range ------ 0~5V, 0~10V, 4~20mA, 10K thermistor, dry contact

Input protection ------ Lightning,static

Accuracy ------ ±0.1%

Zero drift ------ ±3uV/℃

Sample rate ------ 200sample/second(16 channels)1000 sample/second(1 channel)

Output BUS ------ RJ45/RS232/RS485

Output Protection ------ Lightning,static

Power input ------ 12~24V(AC/DC)

Power consumption ------ 39mA@24VDC
