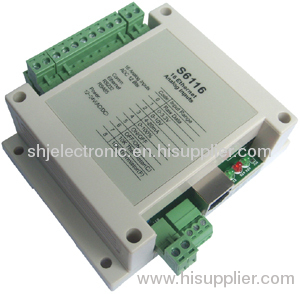

S6116 is a high quality and low cost Ethernet data acquisition module with 16 analog inputs. Each input has lightning and surge protection, can be any combination of 0-5V, 0-20mA, 0-10V, dry contact, NTC 10K thermistor. Fast speed MCU can handle high frequency pulse and store counter into EEPROM. Output is Ethernet with MODBUS/TCPIP protocol, also has a RS232/RS485 port with standard modbus protocol to configure the module.

Technical data:

Resolution ------ 12-bit

Input channel number ------      16

Input range ------ 0~5V, 0~10V, 4~20mA, 10K thermistor, dry contact

Input protection ------ Lightning,static

Accuracy ------ -±0.1%

Zero drift ------ ±3uV/℃

       Sample rate ------ 200sample/second(16 channels)1000 sample/second(1 channel)

       Output BUS ------ Ethernet/RS232/RS485

       Output Protection ------ Lightning,static

       Power input ------ 12~24V(AC/DC)

       Power consumption ------ 39mA@24VDC

Ambient temperature:

              Operation ------ - -20~85℃(-13~185℉)

              Storage ------   -40~100℃(-40~212℉)

Ambient humidity ------ 10%~90%RH

Material,enclosure ------ Flame proof plastic

Enclosure rating ------ -IP31

Colour ------ White/Black

Size ------ 115*90*43 mm
